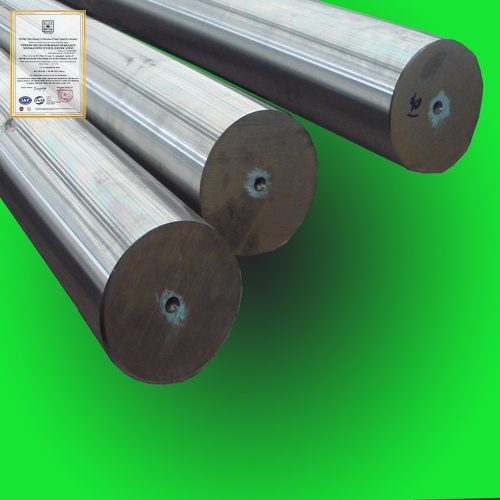

AMS 6304 ESR Quality Round bar instock
| Product parameters | |
| Material technical standards:: | AMS 6304L |
| Stock & Inventory available:: | Diameter 16 ~ 230mm |
| Min. order quantity:: | 500 KG or negotiable |
| Customs HS code:: | 72283000 |
| Production lead time:: | Within 5 days after payment |
Description
TECHNICAL DATA SHEET - AMS 6304
Material category: High tensile strength alloy steel
Technical specifications: AMS 6404L
Specical melting process: Consumable electrode remelted
Typical chemical elements (mass fraction %)
Carbon, C (％): 0.40 ~ 0.50
Manganese, Mn (％): 0.40 ~ 0.70
Silicon, Si (％): 0.15 ~ 0.35
Phosphorus, P (％) ≤: 0.025
Sulfur, S (％) ≤: 0.025
Chromium, Cr (%): 0.80 ~ 1.10
Vanandium, V (%): 0.25 ~ 0.35
Molybdenum, Mo (%): 0.45 ~ 0.65
Nickel, Ni (%): ≤ 0.25
Copper, Cu (%): ≤ 0.35
MECHANICAL PROPERTY AND HARDNESS
Quenching temperature /℃: 930
Tempering temperature /℃: 590
Tensile strength, Rm ≥ MPa: -
Yield strength, Rp0.2 ≥ MPa: -
Elongation, A5 ≥ (％): -
Reduction of area, Z ≥ (％): -
Hardness in condition of annealing +A: HB 229 max.
MELTING PROCESS & APPLICATION
This alloy is generally smelt in Electric Arc Furnace + Electroslag remelting (ESR).
For a purpose of superior quality, it should be smelt via technology of vacuum refining or by agreement.
It is suitable for applications such as high tensile shafts, bolts and nuts, gears, pinions spindles and so on.
PROFILE & SIZES
Round bar / disc: 5.5mm to 850mm
Square bar / flat bar: 10mm to 600mm
Other different shapes based on OEM.
