X20CrMoWV12-1 / 1.4935 / AISI 422 Turbine Blade Steel
| Product parameters | |
| Material category:: | Martensitic Stainless Steel Series |
| Material technical standards:: | ASTM A565 |
| Stock & Inventory available:: | Diameter 20 ~ 230mm |
| Heat treatment practice:: | Hardened 1030 ℃, oil or air cooled, tempered 620 ℃ min, double tempered |
| Production lead time:: | Within 10 days after 40% deposit prepayable |
| Unified social credit code:: | 91510784777942750J |
| Company ISO register No.:: | 04321Q32740R0S |
Description
Introduction:
X20CrMoWV12-1 usually produced by BEF & AOD followed by electroslag remelting (ESR) / VAR if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different levels according to the buyers' requirements.
100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Bars are usually supplied black/bright in the annealed condition.
X20CrMoWV12-1 usually produced by BEF & AOD followed by electroslag remelting (ESR) / VAR if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different levels according to the buyers' requirements.
100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Bars are usually supplied black/bright in the annealed condition.
All Grades Comparison
| DIN | W-Nr |
|---|---|
| X20CrMoWV12-1 | W-Nr 1.4935 |
| C | Si | Mn | P | S | Cr | Ni | Mo | Other |
|---|---|---|---|---|---|---|---|---|
| 0.17 ～ 0.25 | 0.10 ～ 0.50 | 0.30 ～ 0.80 | ≤ 0.045 | ≤ 0.030 | 11.0 ～ 12.5 | 0.30 ～ 0.80 | 0.80 ～ 1.20 | W 0.80 ～ 1.20 V 0.25 ～ 0.35 |
Mechanical Properties
| Condition of heat treatment | Tensile Rm(MPa) |
Yield Rp0.2(MPa) |
Elongation A(%) |
Reduction in cross section on fracture Z (%) |
Impact AKV/AKU(J) |
Brinell Hardness(HBW) |
|---|---|---|---|---|---|---|
| Annealing | - | - | - | - | - | - |
| Q/T | 780 ～ 930 | ≥ 590 | ≥ 14.0 | - | ≥ 34 | - |
Shapes and dimensions:

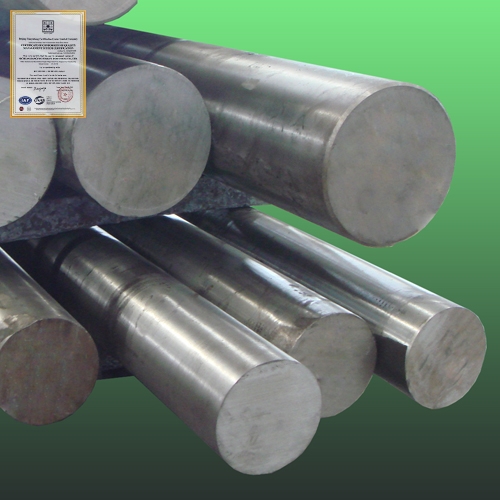

Round bar (Diameter): 5.5 mm to 700 mm
Wire rod (Diameter): 0.10 ~ 16mm

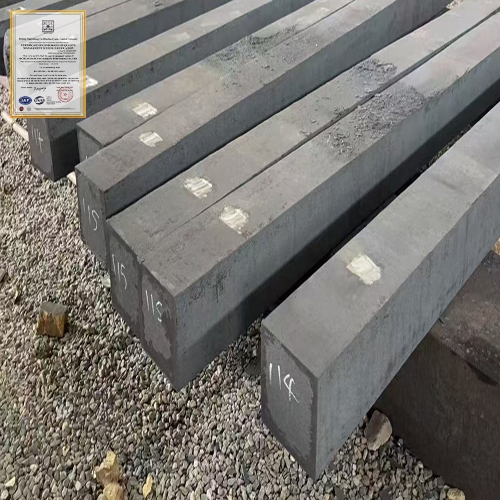

Square bar / Flat bar: 5mm to 550mm
Forged ring: OD200 ~ 1500mm X ID150 ~ 1250mm X H20 ~ 1250mm
Heavy/middle plate via hot rolled: T50 - 200mm X W80- 1200mm X L1000-3000mm
Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Major applications and features for this type of grade
Engine components.
Plastic moulding dies
Corrosion resistant
Heat resistant quality
Polishing performance
